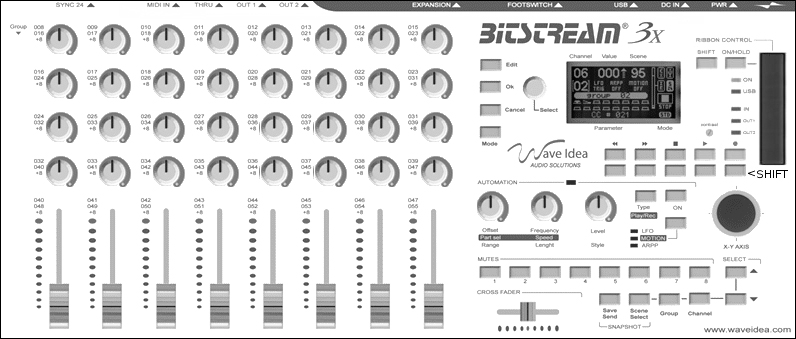

Bitstream 3X

High performance universal MIDI controller (2007)

A very flexible and well-built controller though it can can be difficult to program. I've created templates for the Roland Alpha Juno, Roland D-50, Roland JX-3P (with midi upgrade), and the Yamaha DX100.

Mapping Templates

All mappings are contained in this single library file for the Bitstream 3X configuration software

Library File (.bs3)

Text document where you can see all the values mapped to each control

Assignment Log (.txt)

Configuration software is available at the WaveIdea Site

Group Assignments

Group 0 - Roland JX-3P (with Series Circuits midi upgrade kit)
Group 1 - Roland Alpha Juno
Group 2 - Yamaha DX100 (Layer A)
Group 3 - Yamaha DX100 (Layer B)

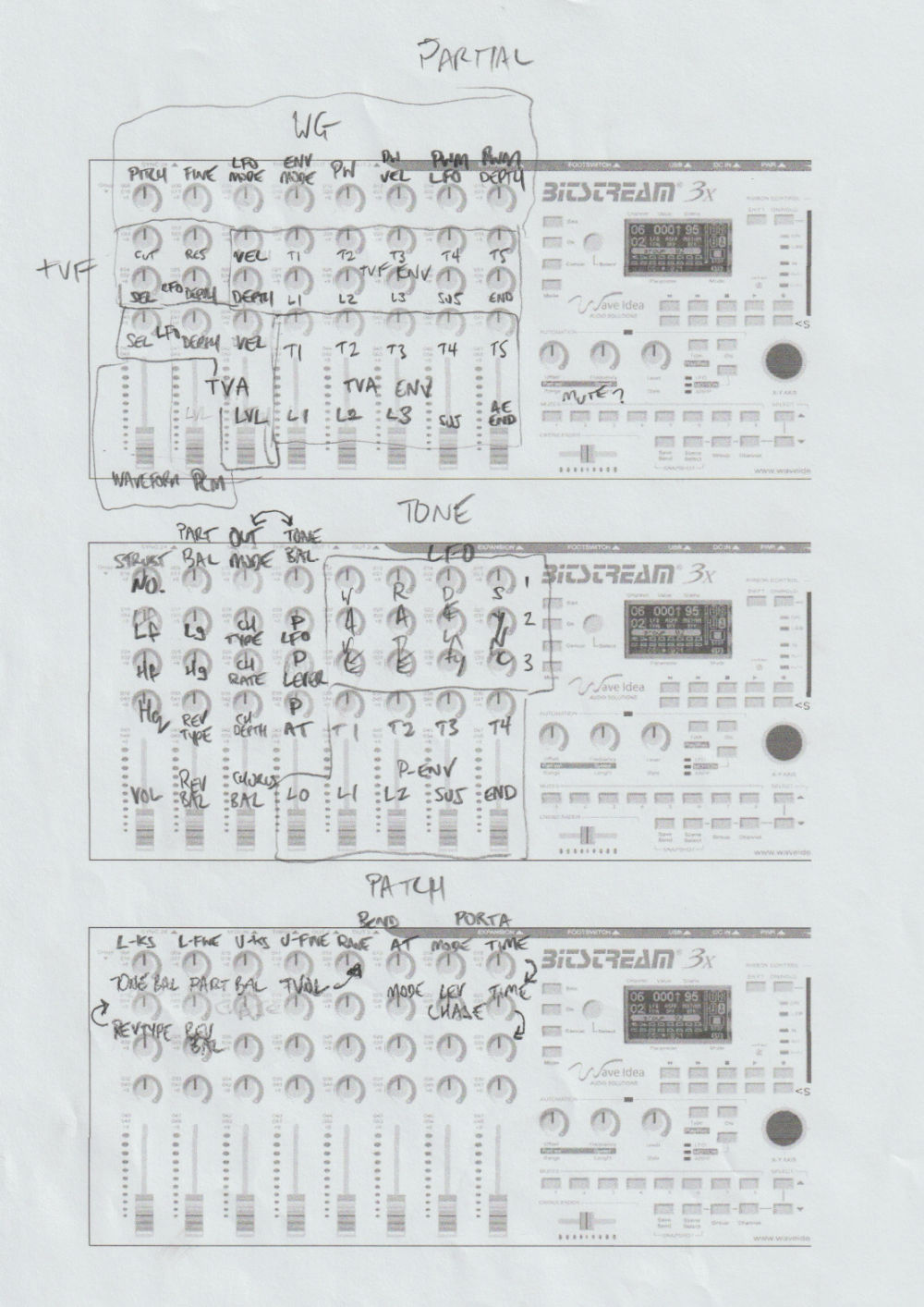

Group 4 - Roland D-50 (Patch)
Group 5 - Roland D-50 (Lower Tone)
Group 6 - Roland D-50 (Upper Tone)
Group 7 - Roland D-50 (Lower Partial 1)
Group 8 - Roland D-50 (Lower Partial 2)
Group 9 - Roland D-50 (Upper Partial 1)
Group 10 - Roland D-50 (Upper Partial 2)

Visual Mapping Guides

Click an image to view the full-size mapping template

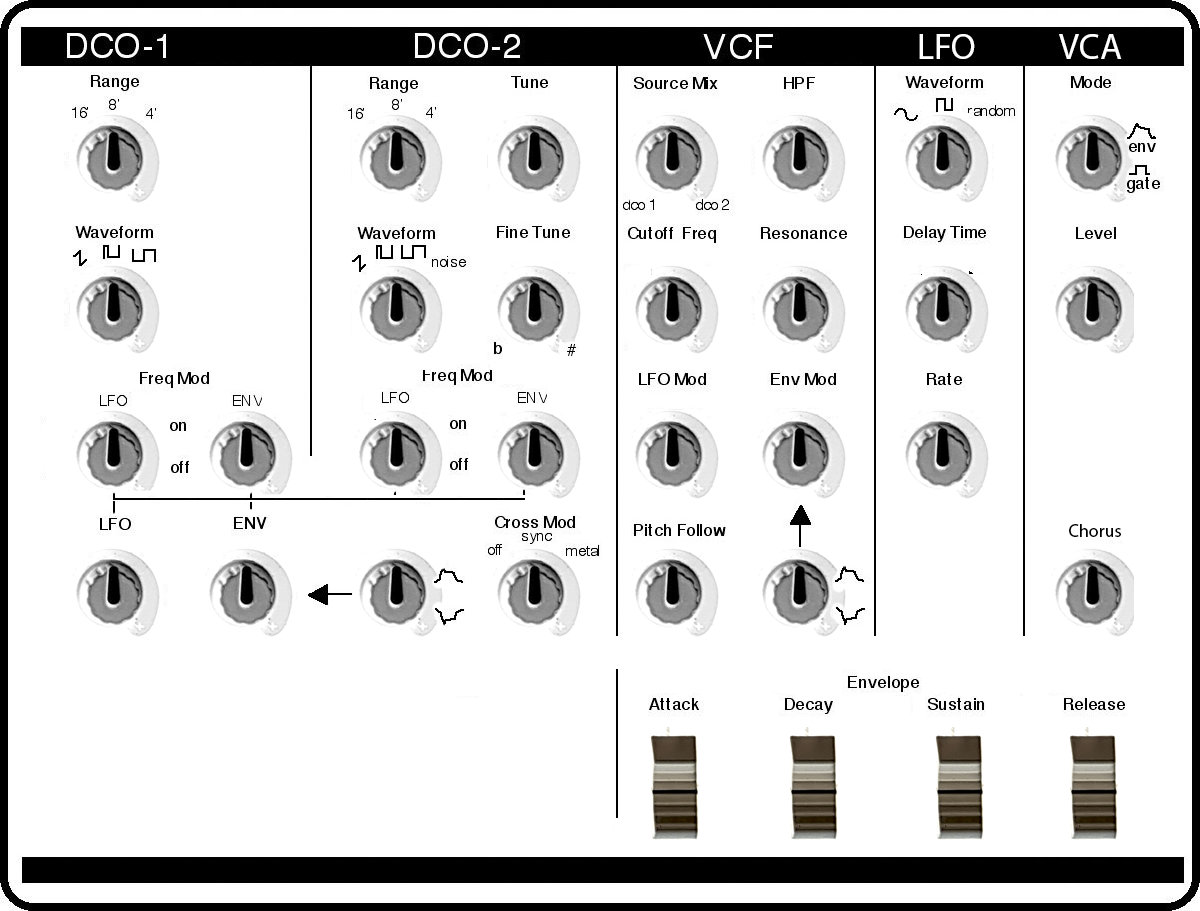

Roland JX-3P

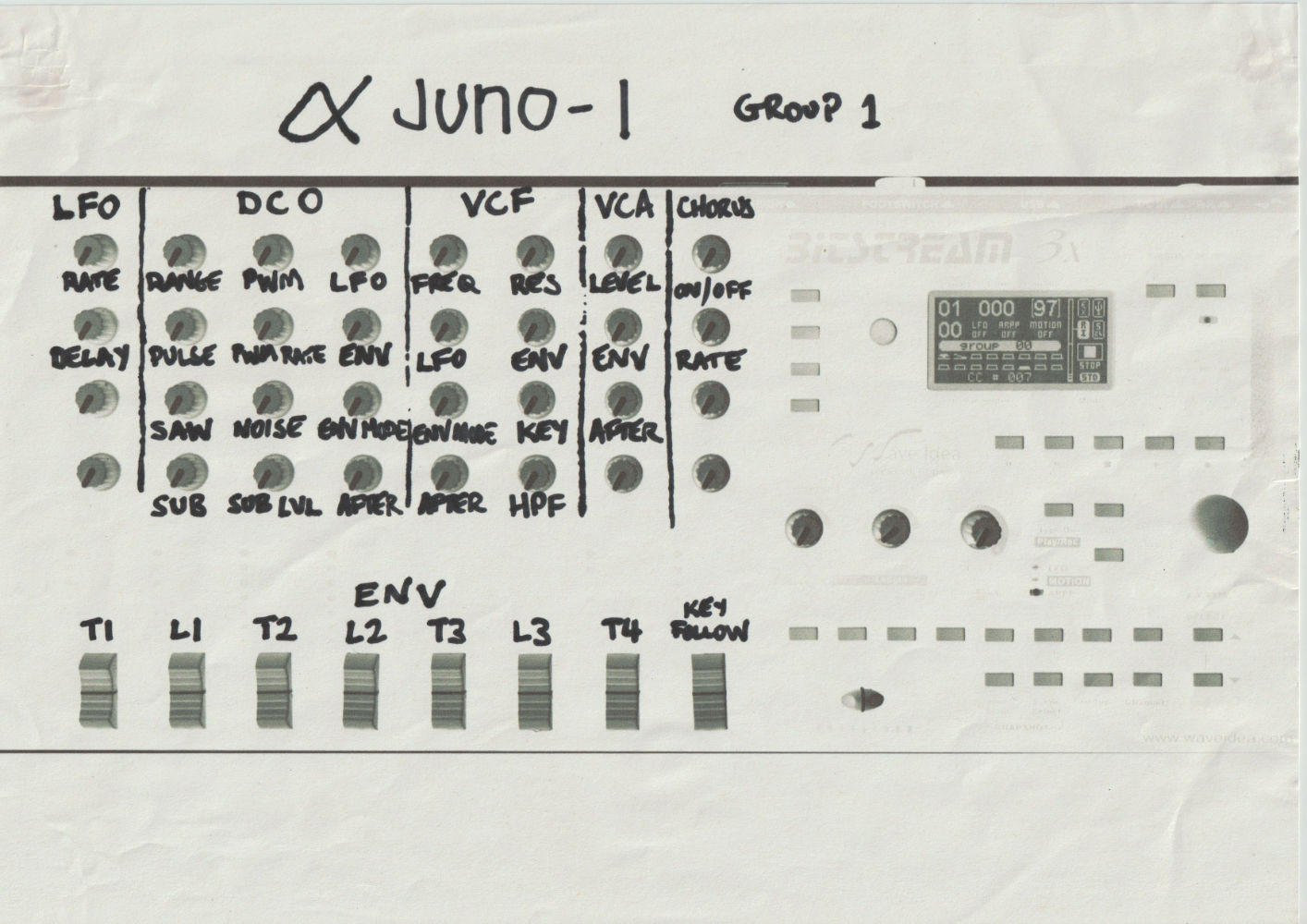

Roland Alpha Juno

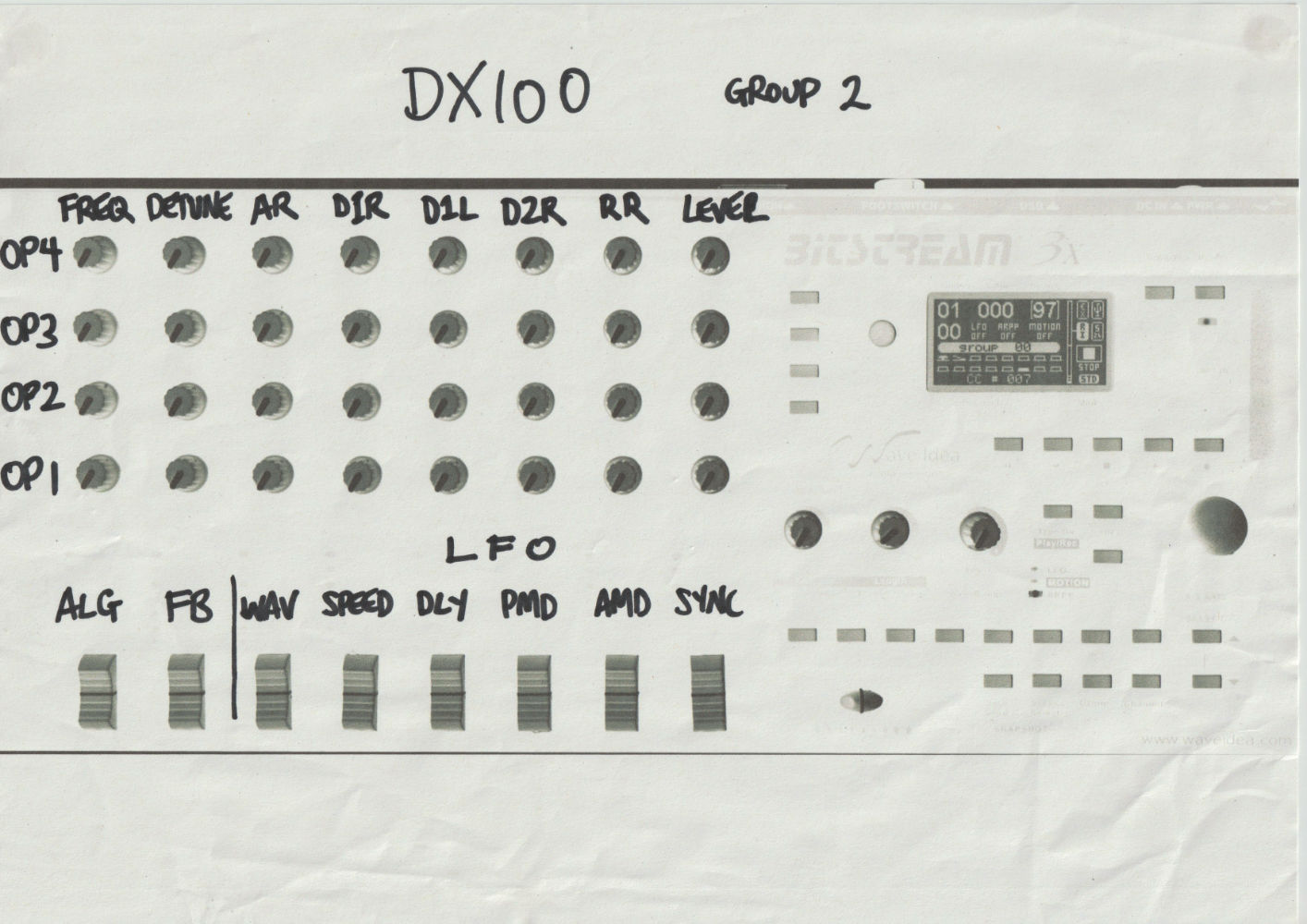

Yamaha DX100 (Layer A)

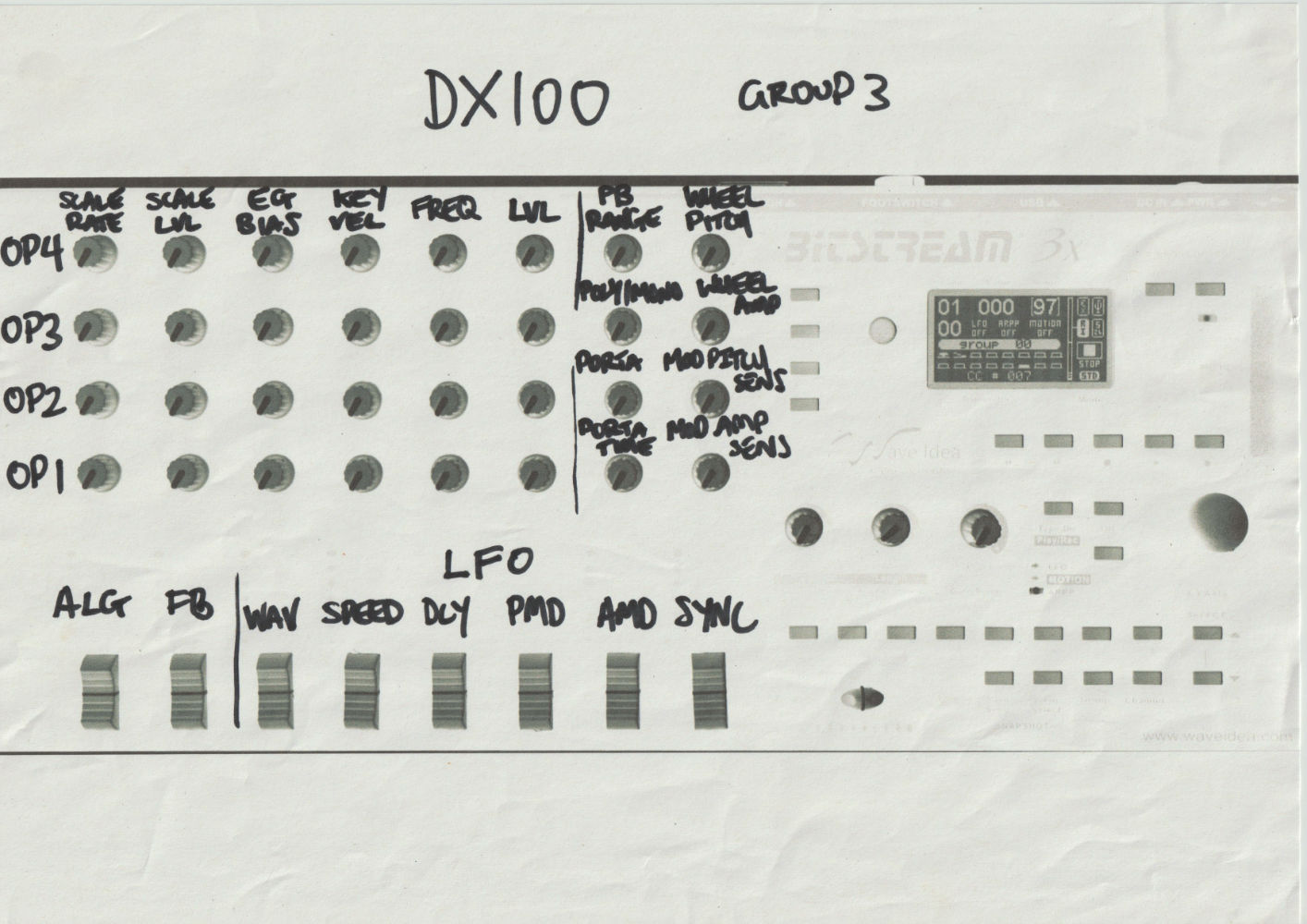

Yamaha DX100 (Layer B)
